Shaanxi High-end Industry &Trade Co., Ltd.
Commit to Qualified Products & Service in Nonferrous Metal Supply. AS9100& Norsok M650 qualified factory.
 |
| Place of Origin: | China |
| Brand Name: | YIXIN TITANIUM |
| Certification: | NORSOK M650， AS 9100 |
| Model Number: | Dia:90*1000-3000mm |
| Minimum Order Quantity: | 50KG |
|---|---|
| Packaging Details: | Polywood cases |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P |
| Supply Ability: | 200ton per month |
| Material Element: | Ti-6Al-4V | Weight: | 4.51g/cm3 |
|---|---|---|---|
| Application: | Aircraft Bulkhead,connector,fasteners | Tensile Strength: | 978MPA |
| Yield Strength: | 911MPA | Elongation: | 16% |
| High Light: | ti 6al 4v bar,80mm Gr5 ti 6al 4v bar,80mm titanium flat bar stock |
||

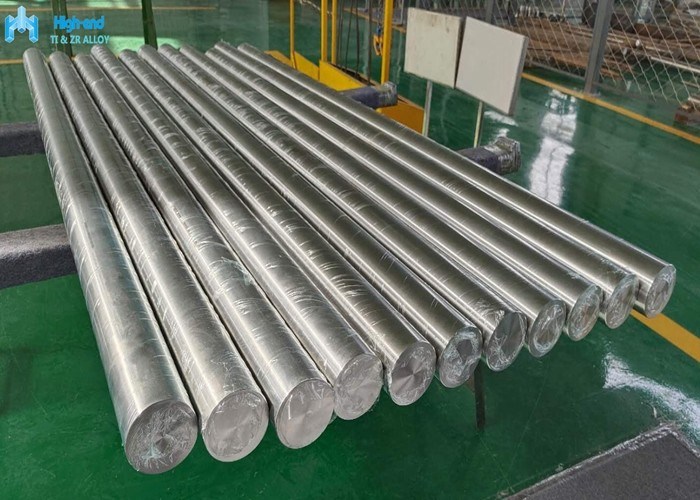

Aircraft Accessories AMS4928W Gr5 Titanium Alloy Bar Dia 80mm
Titanium aerospace material have been used typically for parts requiring moderate strength with a maximum service temperature in the 399 to 510 ℃ range depending on time at temperature where the product is to be used in the annealed condition.
Chemical Test
| Material grade | Al | V | Fe | O | C | N | H |
| Gr5 | 6.23 | 4.11 | 0.24 | 0.153 | 0.013 | 0.012 | 0.0008 |
Mechanical Test
| Material grade | Tensile Strength | Yield Strength | Elongation | Reduction of Area |
| Gr5 | 978 | 911 | 16.0 | 41 |
Mechanical properties
Chemical compositon
Product Related photos
