Shaanxi High-end Industry &Trade Co., Ltd.
Commit to Qualified Products & Service in Nonferrous Metal Supply. AS9100& Norsok M650 qualified factory.
 |
| Place of Origin: | China |
| Brand Name: | YIXIN TITANIUM |
| Certification: | Norsok M650, AS 9100D,LR PED |
| Model Number: | 930*142.5*233 |
| Minimum Order Quantity: | 50KG |
|---|---|
| Packaging Details: | Polywood cases |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P |
| Supply Ability: | 30tons per month |
| Material Grade: | Gr5, Ti 6Al 4V, TC4 | Dimension: | Lengt1200×Width800×H500 |
|---|---|---|---|
| Standard: | ASTM 348, ASTM B381, AMS4928, AMS 4967 | Weight: | 4.51 G/cm3 |
| Heat Treatment: | Annealing, Solution Heat Treatment | Production Method: | Forged, Ring Machine Rolled |
| High Light: | Titanium Forged Steel Block,Forged Steel Block 6Al4V,Annealing Forging Block |
||

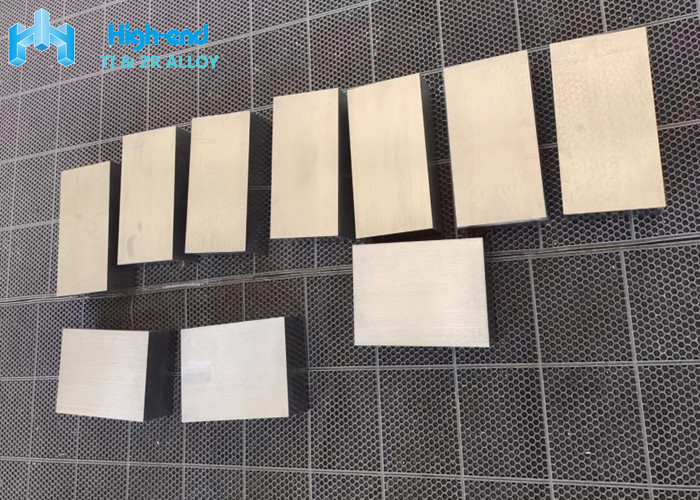

Titanium 6Al4V Forged Block GJB2744a-2007 Hot Forged Block
Ti 6Al4V, alpha-beta grade, is the most widely available and heavily used of all the titanium grades. The alloy is heat treatable and combines excellent strength and corrosion resistance with weld and fabricability.
Ti-6AL-4V Titanium Applications:
Jet engine compressor blades, discs and rings
Airframe components
Military Hardware
Pressure vessels
Space craft components, including rocket engine
Medical & surgical devices
Chemical Test
| Material grade | Al | V | Fe | O | C | N | H | Ti |
| Ti-6Al4V /Gr5 | 6.30 | 4.02 | 0.16 | 0.139 | 0.010 | 0.012 | 0.0010 | Balance |
Mechanical Test
| Material grade | Tensile Strength | Yield Strength | Elongation | Reduction of Area |
| Ti-6Al 4V /Gr5 | 936 | 863 | 15.5 | 45 |
Advantage of TITANIUM materials for AEROSPACE applicaitons
· Light weight
· High strength
· High fatigue resistance
· High heat resistance
