Shaanxi High-end Industry &Trade Co., Ltd.
Commit to Qualified Products & Service in Nonferrous Metal Supply. AS9100& Norsok M650 qualified factory.
Place of Origin: | China |
Brand Name: | YIXIN TITANIUM |
Certification: | AS 9100D, NORSORK M650, PED |
Model Number: | OD280×ID249×505 |
Minimum Order Quantity: | 5 |
---|---|
Packaging Details: | Polywood cases |
Delivery Time: | 5 days |
Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P |
Supply Ability: | 20000pcs per month |
Material Grade: | Gr2/Gr4/Gr5/Gr23 | Standard: | ASTM B348, ASTM B381, GB/T 16598 |
---|---|---|---|
Dimension: | As Client Requirments | Surface: | Machined |
Ultrasonic Test: | UT Class A | ||
High Light: | Forged Titanium Tube,Seamless Titanium Forged Pipe,Ti6Al4V Titanium Forging Tube |

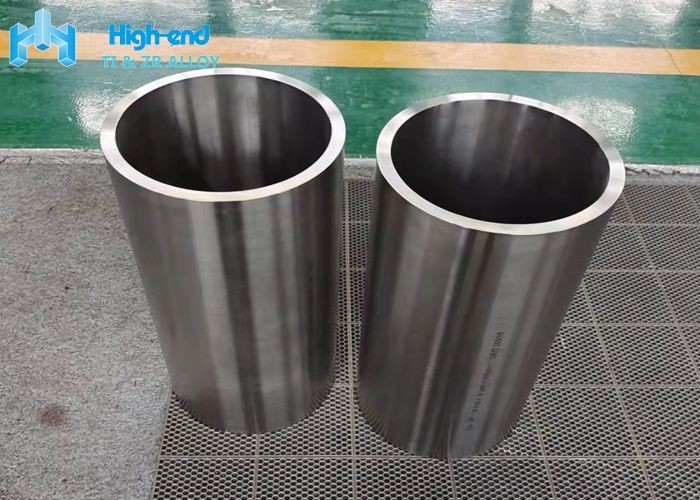

Titanium Forged Tube Ti6Al4V Seamless Tube ASTM B381
Titanium heavy wall thickness tube usually used the forged production method, since it's very hard to produce by rolling machine. Ti6Al4V tube usually used as the cover of the key parts.
Chemical Test
Material grade | Al | V | Fe | O | C | N | H | Ti |
Grade 5 | 6.05 | 4.07 | 0.178 | 0.16 | 0.011 | 0.011 | 0.001 | Balance |
Mechanical Test
Material grade | Tensile Strength | Yield Strength | Elongation | Reduction of Area |
Grade 5 | 992 | 927 | 18 | 46 |
