Shaanxi High-end Industry &Trade Co., Ltd.
Commit to Qualified Products & Service in Nonferrous Metal Supply. AS9100& Norsok M650 qualified factory.
 |
| Place of Origin: | MADE IN CHINA |
| Brand Name: | YIXIN TITANIUM |
| Certification: | AS9100 and NORSOK M650 qualified |
| Model Number: | ASTM B381 F5 |
| Minimum Order Quantity: | 5PC |
|---|---|
| Packaging Details: | Plywooden case |
| Delivery Time: | 20 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | 100 tons per month |
| Technique: | Forged | Material: | Titanium Gr5/F5 |
|---|---|---|---|
| Size: | OD280*ID220*173MM | Tensile: | 955MPA |
| Yield Strength: | 885MPA | Advantage: | High Performance |
| High Light: | 173mm Titanium Forging,NORSOK M650 Titanium Forging,Die Forging ti6al4v alloy |
||

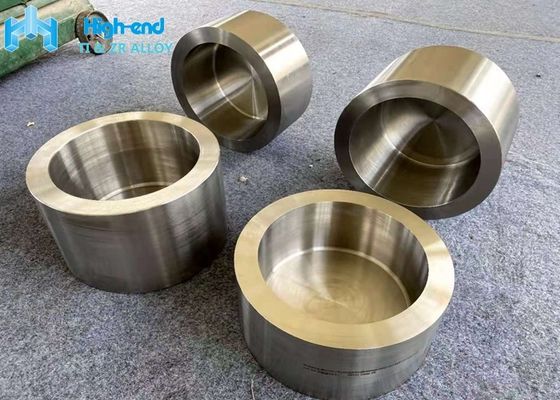

ASTM B381 Titanium Alloy TI6AL4V F5 Die Forging Machined Part
Product
The heating temperature is very important in the heat treatment of titanium alloy.The lower the temperature, the greater the deformation resistance, easy to produce cracks and other defects.At the same time, the deformation speed depends greatly on the hot working process.When the forging die temperature is heated to a temperature equal to or higher than that of the forgings, the temperature drop of the forgings can be inhibited during the forging process.
Titanium alloy has high strength, good corrosion resistance, non-magnetic, good welding properties, as well as superconductivity, hydrogen storage, memory and a series of advantages.As a result, titanium alloys are widely used in a number of cutting-edge fields, such as aerospace, military, Marine development and petrochemical.In the application of various titanium alloy products, forgings are mostly used in gas turbine compressor discs and medical artificial bones which require high strength, toughness and reliability.Therefore, forgings require not only high dimensional accuracy, but also materials with excellent characteristics and high stability.
Merit
| Density | 4.51g/cm3 ; compared with steel (7.89g/cm3) |
| Size | OD280*ID220*173MM |
| Weight: | Light weight compared with steel 2/3;Long life term; |
Original Test Report
| Tensile Strength | Yield Strength | EL | RA |
| 955MPA | 885MPA | 16.5 | 42 |
MTC
