Shaanxi High-end Industry &Trade Co., Ltd.
Commit to Qualified Products & Service in Nonferrous Metal Supply. AS9100& Norsok M650 qualified factory.
 |
| Place of Origin: | China |
| Brand Name: | YIXIN TITANIUM |
| Certification: | Norsok M650, AS 9100D |
| Model Number: | OD:5~219×T: 0.5~12×L: 15000mm |
| Minimum Order Quantity: | 50KG |
|---|---|
| Packaging Details: | Polywood cases |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P |
| Supply Ability: | 30tons per month |
| Material Grade: | Gr1, Gr2, Gr7, Gr9, Gr12, Ti 6Al 4V | Diameter: | OD:5~219×T: 0.5~12×L15000mm |
|---|---|---|---|
| Standard: | ASTM B337, ASTM B338 | Tube Type: | Seamless Tube, Welded Tube |
| Weight: | 4.51 G/cm3 | Test: | Tensile Requirements, Flattening Test, Flaring Test |
| High Light: | ASTM B338 Titanium Pipes,15000mm Titanium Pipes,ASTM B338 titanium tube heat exchanger |
||

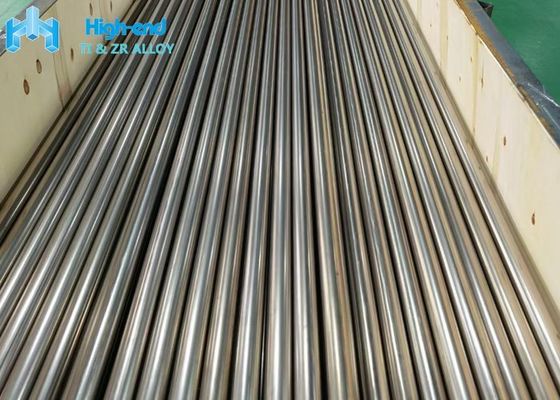

Seamless and Welded Titanium Tubes for Condensers and Heat Exchangers
A titanium heat exchanger is a heat-transfer device, made of titanium or its alloys, that is used for transfer of internal thermal energy between two or more corrosive fluids. Titanium tubes manufactured to ASTM B338/ ASME SB-338 are widely applied for the fabrication of tubular heat exchangers. The tubular heat exchanger mainly covers double-pipe heat exchanger, shell and tube heat exchanger, and coiled tube heat exchanger. The titanium tubes can be furnished in either seamless or welded style.
Seamless and Welded Titanium Tubes Chemical Test
| Material grade | Mo | Ni | Pd | Al | V | Fe | O | C | N | H | Ti |
| Gr2 | / | / | / | / | / | 0.169 | 0.19 | 0.008 | 0.011 | 0.001 | Balance |
| Gr7 | / | / | 0.14 | / | / | 0.129 | 0.15 | 0.017 | 0.021 | 0.001 | Balance |
| Gr12 | 0.3 | 0.772 | / | / | / | 0.172 | 0.20 | 0.08 | 0.03 | 0.001 | Balance |
Seamless and Welded Titanium Tubes
| Shape | U-shape tube, straight tube |
| Material grade |
Gr1, Gr2, Gr5, Gr7, Gr79, Gr12, Ti 6Al 4V |
| Standard | ASTM B337, ASTM B338, ASTM B861, ASTM B862 |
| Dimension | OD:5~219×T: 0.5~12×L15000mm |
| Production method | Rolled, welded |
| Appilcation | heat exchange equipment, chemical equipment, bike frame, neclear power plant |
Seamless and Welded Titanium Tubes
