Commit to Qualified Products & Service in Nonferrous Metal Supply. AS9100& Norsok M650 qualified factory.
Place of Origin: | MADE IN CHINA |
Brand Name: | YIXIN TITANIUM |
Certification: | AS9100 and NORSOK M650 qualified |
Model Number: | ASTM B550 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | Plywooden case |
Delivery Time: | 15DAYS |
Payment Terms: | T/T, D/P, Western Union, MoneyGram |
Supply Ability: | 100 tons per month |
Technique: | Forged And Machined Ring | Grade: | R60702 |
---|---|---|---|
Dimensions: | OD160MM | Density: | 6.5 G/cm3 |
Tensile: | 426MPA | Yield: | 235MPA |
High Light: | ASTM B550 Zirconium Forging Ring,Zr 60702 Zirconium Forging Ring,ASTM B550 seamless rolled rings |

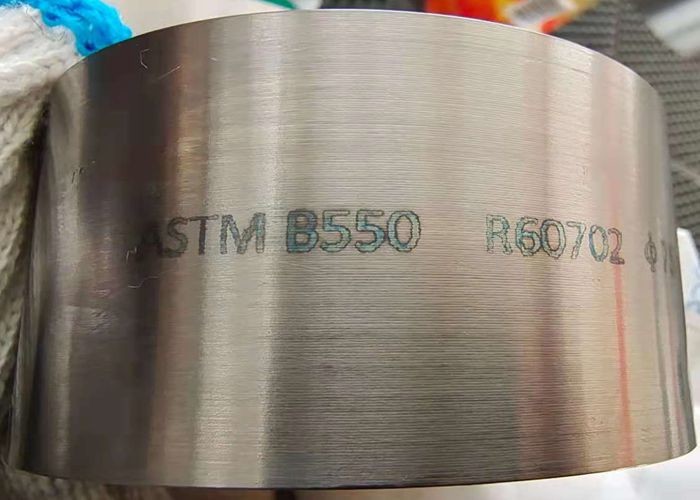

ASTMB550 ZR60702 Pure Zirconium Bar Forged OD160MM With UT Level A Tested
Product
The main applications include pressure vessels, heat exchangers, pipes, tanks, shafts, agitators and other mechanical equipment as well as valves, pumps, sprayers and tower linings, especially acetic acid, pesticides, plastics and other industries are widely used.
Chemical Test
Material | Cr | Hf | Fe | O | C | N | H |
ZR60702 | 0.013 | 2.25 | 0.12 | 0.121 | 0.005 | 0.002 | 0.0007 |
Mechanical Properties
Material | Tensile | Yield | EL | Re |
ZR60702 | 426 | 235 | 22.0 | 40 |
Details
Material | Zr60702 |
Standard | ASTMB550,ASTMB493 |
Mechanical properties | 426MPA/269MPA/27%/44% |
Tested |
Destractive testing with sample from product, UT 100%(AMS2631E), PT 100%(ASTM E165) |
Hardness | MIN179 HBW |
Dimension | 160*170mm , 75*39mm |
Chemical from Ingot
MTC From YIXIN
