Commit to Qualified Products & Service in Nonferrous Metal Supply. AS9100& Norsok M650 qualified factory.
 |
| Place of Origin: | China |
| Brand Name: | YIXIN TITANIUM |
| Certification: | AS9100D, NORSOK M650 |
| Model Number: | Dia30~40mm×H:8.5/9.5/10.5/12.5/14.5/16.5/18.5mm |
| Minimum Order Quantity: | 50kgs |
|---|---|
| Packaging Details: | Polywood cases |
| Delivery Time: | 5 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P |
| Supply Ability: | 20000pcs per month |
| Material Grade: | Gr2/Gr4//Gr5/Gr23/Ti6Al4VELI | Diameter: | 30~40mm |
|---|---|---|---|
| Height: | H:8.5/9.5/10.5/12.5/14.5/16.5/18.5mm | Standard: | ASTM F67, ASTM F136, ISO 5832-2, ISO 5832-3 |
| Test: | Chemical, Mechanical Properties, Microstucture | Technique: | Wire Cutting Part |
| High Light: | Implant Disc astm f136 titanium,Grade 2 astm f136 titanium,ISO 5832 flat round metal discs |
||

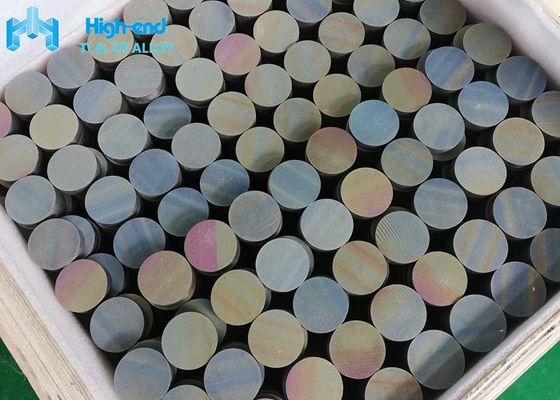

Titanium Grade 2 Disc ASTM F67 Dental Implant Disc ISO 5832-2 Disc
Milling blanks mostly are made of pure titanium(Grade 2) or titanium alloys(Grade 23 or Ti-6Al4V eli) , which are suitable for the milling of dental implants, bridge works, crown, abutments and combined dentures.
Chemical Test
| Material grade | Al | V | Fe | O | C | N | H | Ti |
| Grade 2 | / | / | 0.158 | 0.17 | 0.018 | 0.015 | 0.001 | Balance |
| Grade 4 | / | / | 0.344 | 0.33 | 0.006 | 0.014 | 0.001 | Balance |
| Grade 5 | 6.05 | 4.07 | 0.178 | 0.16 | 0.011 | 0.011 | 0.001 | Balance |
| Ti-6Al4V ELI | 5.98 | 4.12 | 0.149 | 0.084 | 0.015 | 0.011 | 0.001 | Balance |
Mechanical Test
| Material grade | Tensile Strength | Yield Strength | Elongation | Reduction of Area |
| Grade 2 | 466 | 400 | 32 | 63 |
| Grade 4 | 671 | 552 | 25.5 | 51 |
| Grade 5 | 992 | 927 | 18 | 46 |
| Ti-6Al4V ELI | 909 | 842 | 14.5 | 35 |
Advantage of TITANIUM materials for surgical implant applicaitons
· Light weight
· Corrosion Resistant
· Excellent biocompatibility
· Low thermal conductivity
· Free of X ray
