| Place of Origin: | China |
| Brand Name: | YIXIN TITANIUM |
| Certification: | Norsok M650 |
| Model Number: | ASTM B381 F5 |
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Polywood cases |
| Delivery Time: | Min3days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P |
| Supply Ability: | 300TONS Per month |
| Material Grade: | Gr5 TI6AL4V | Size Range: | Max OD 1700mm |
|---|---|---|---|
| Standard: | ASTMB381 | Condition: | Annealed |
| Process: | Forged/Rolled | Surface: | Ra1.6-Ra3.2 |
| High Light: | ASTM B381 Alloy Forged Titanium Ring,Annealed Forged Titanium Ring,Annealed seamless rolled rings |
||

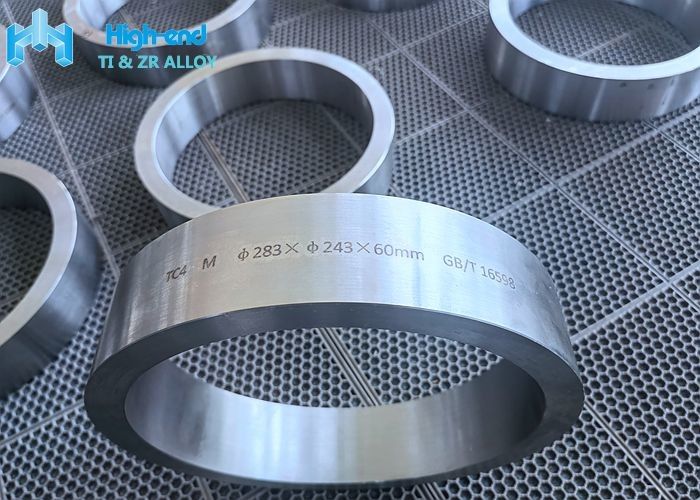

Gr5 Ti6al4v Fine Microstructure Thin Thickness For Titanium Alloy Forging Ring
With high strength,low density and corrosion resistance character, Titanium is the first good choice used in sea environment. TX seal forging produced by YIXIN has high strength than normal ASTMB381 standard requirment. YIXIN has selected chemical composition in sponge and fixed the production process to meet the mechanical properties criteria. HSE operation idea and traceabilities has been firmly followed during the productions.
The production flow roughly as below: Titanium sponge selection , alloy additives for making the ingot by vaccum melting (VRC-Three times)→ Billet forging by Oil press→ Cutting of mateiral→Forging activities(Heating at times different by size)→ Heat treatment (Annealing)→Mechanical/chemical test→Machining→NDE test (Visual inspection/UT inspection/Hardness 100% on forgings)→Marking & Packing.
| Name | Gr5 Ti6al4v Fine Microstructure Thin Thickness For Titanium Alloy Forging Ring |
| Titanium material grade | Gr5 /F5 |
| Standard | ASTMB381/ Client spec. |
| NDE&Destructive test | UT/PT/Mechanical properties/Chemical composition check |
| Production method | Forging /Ring-Rolling |
UT test probe and calibrated block; Behind material is rest of test specimens.
YIXIN Make sure that Production as per standard and process strictly followed.
UT test 100% of surface ; Reference block and test probe are calibrated per year. YIXIN has equipped with
certified personnel Level 2, Level 3.

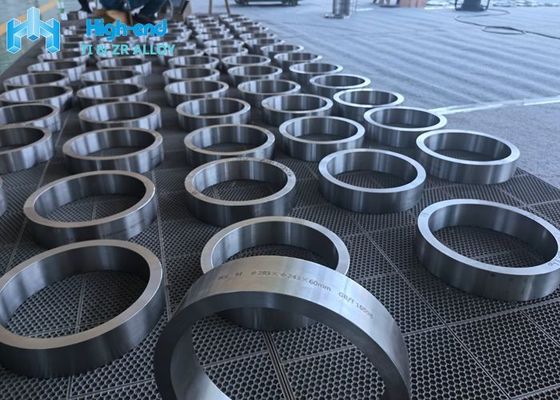

Various size of forging ring and flanging supplied.
YIXIN has make sure all products delivered as per standard and PO requirement.
