Shaanxi High-end Industry &Trade Co., Ltd.
Commit to Qualified Products & Service in Nonferrous Metal Supply. AS9100& Norsok M650 qualified factory.
 |
| Place of Origin: | China |
| Brand Name: | YIXIN TITANIUM |
| Certification: | Norsok M650, AS 9100D |
| Model Number: | OD604×ID446×42mm |
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Polywood cases |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P |
| Supply Ability: | 300TONS Per month |
| Material Grade: | Gr3, F3 | Size: | OD604×ID446×42mm |
|---|---|---|---|
| Standard: | ASTMB381 | Condition: | Annealed |
| Process: | Forged/Rolled | Surface: | Ra1.6-Ra3.2 |
| High Light: | Gr3 Forged Titanium Ring,F3 Forged Titanium Ring,Gr3 seamless rolled rings |
||

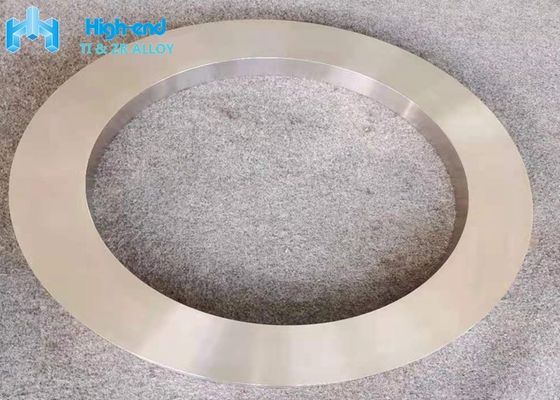

Gr3 Titanium Forged Ring ASTM B381 F3 Titanium Ring
The process for the seamless roll forged ring involves cutting a hole out of a forging material, and rolling it into a thin ring. The roll forged rings offer improved concentricity and smooth surfaces as compared welded rings. Forging rings also save the material compared to the machined rings from bar billet by not having to bore out the inner diameter.
Titanium Fogred Ring Production Scope
| Name | Gr3 ASTMB381 Titanium Forged Ring OD604MM |
| Titanium material grade | F1, F2, F5, F7, F9, F12 CP2, CP1 |
| Standard | ASTMB381 |
| Production scope | OD604×ID446×42mm |
| NDE&Destructive test | UT/PT/Mechanical properties/Chemical composition check |
| Production method | Forging / Rolling Ring |
Chemical Test
| Material grade | Fe | O | C | N | H | Ti |
| Gr3 | 0.21 | 0.238 | 0.012 | 0.008 | 0.0007 | Balance |
Mechanical Test
| Material grade | Tensile Strength | Yield Strength | Elongation | Reduction of Area |
| Gr3 | 635 | 516 | 24.0 | 43 |
Chemical composition
Material Test Certificate(EN 10204 3.1 certificate)
