Shaanxi High-end Industry &Trade Co., Ltd.
Commit to Qualified Products & Service in Nonferrous Metal Supply. AS9100& Norsok M650 qualified factory.
 |
| Place of Origin: | China |
| Brand Name: | YIXIN TITANIUM |
| Certification: | Norsork M650 |
| Model Number: | S19.05 |
| Minimum Order Quantity: | 3pcs |
|---|---|
| Packaging Details: | Polywood cases |
| Delivery Time: | 18 days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P |
| Supply Ability: | 200ton/per month |
| Material Grade: | Grade 7 | Condition: | Annealed |
|---|---|---|---|
| Phase Transformation Point: | 913℃-915℃ | Density: | 4.51g/cm3 |
| Standard: | ASTMB381 | Dimension: | S19.05*246.38*541.27 |
| High Light: | ASTM B381 Titanium Plate,19.05mm Titanium Plate,b381 f2 material |
||
Grade 7 High Corrosion Resistance Ti-Pd Alloy Grade 7 Forged Titanium Plate S19.05mm Thickness
Description
The mechanical performance is the same as GR2 material. The crack corrosion resistance is improved to 260°C, and the reducing dilute acid resistance is improved. The applications include all fields of GR2 material, sealing surfaces and other parts that are easy to produce cracks and scale.
Chemical Test
| Grade | Pd | Fe | C | O | N | H |
| Ti Grade 7 | 0.15 | 0.052 | 0.018 | 0.166 | 0.005 | 0.0010 |
Introduction
| Description | Grade 7 High Corrosion Resistance Ti-Pd Alloy Grade 7 Forged Titanium Plate S19.05mm Thickness |
| Material grade | Grade 7 Ti-Pd alloy |
| Standard | ASTMB381 |
| Dimension | S19.05*246.38*541.27 |
| Production method | Forged |
Test result photos- Chemical composition
Test result photos- Mechanical properties test

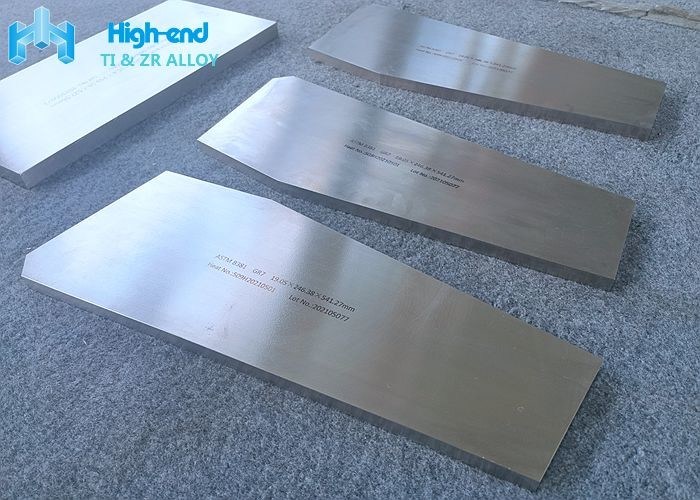

Product Related photos
