Shaanxi High-end Industry &Trade Co., Ltd.
Commit to Qualified Products & Service in Nonferrous Metal Supply. AS9100& Norsok M650 qualified factory.
 |
| Place of Origin: | China |
| Brand Name: | YIXIN TITANIUM |
| Certification: | Norsork M650, AS 9100D |
| Model Number: | OD50~1600×ID20~1500×T:30~300 |
| Minimum Order Quantity: | 2 |
|---|---|
| Packaging Details: | Polywood cases |
| Delivery Time: | 15 days after 30% deposit received |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 60tons per month |
| Material: | Gr2/Gr5//Gr7/Gr12/F2/F5/F7/F12 | Standard: | ASTM B381, AMS 4928, GJB 2744 |
|---|---|---|---|
| Production Method: | Forged, Rolled | Weight: | 4.51 G/cm3 |
| Heat Treatment: | Annealed, Solution Treatment | Test: | Ultrasonic Test, Mechanical Test, Microstructure |
| High Light: | F12 seamless rolled ring forging,ASTM B381 seamless rolled ring forging,ASTM B381 ring rolling forging |
||

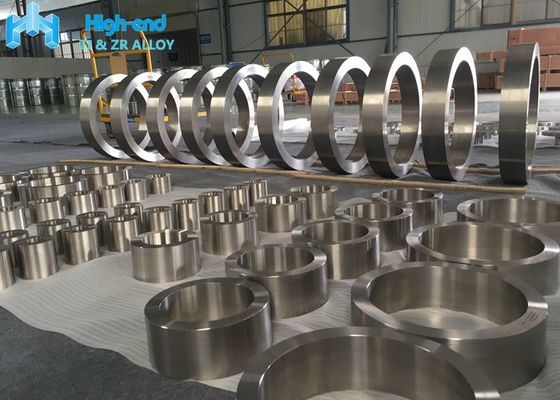

Titanium Seamless Forged Ring
Titanium seamless forged ring process starts with a pre-cut billet being heated to a desired temperature. It’s then hammered or upset on a press. Then the center is pierced to form the hollow center, similar to a doughnut. The part is then rolled or if necessary reheated to bring it up to the forging temperature, before being placed on the ring mill.
Chemical Test
| Material grade | Ni | Mo | Pd | Al | V | Fe | O | C | N | H | Ti |
| Gr2 | / | / | / | / | / | 0.201 | 0.17 | 0.008 | 0.004 | 0.001 | Balance |
| Gr5(Ti 6Al-4V) | / | / | / | 5.99 | 4.03 | 0.168 | 0.15 | 0.008 | 0.006 | 0.001 | Balance |
| Gr7(Ti-0.2Pd) | / | / | 0.14 | / | / | 0.129 | 0.15 | 0.017 | 0.021 | 0.001 | Balance |
| Gr12(Ti-0.3Mo-0.8Ni) | 0.80 | 0.294 | / | / | / | 0.175 | 0.19 | 0.008 | 0.003 | 0.002 | Balance |
Titanium seamless forged ring is widely applied in chemical equipment, medical equipment, subsea oil & gas, water treatment, aerospace, military ect. for it's lightness, high-corrosion-resistance.
