Shaanxi High-end Industry &Trade Co., Ltd.
Commit to Qualified Products & Service in Nonferrous Metal Supply. AS9100& Norsok M650 qualified factory.
 |
| Place of Origin: | China |
| Brand Name: | YIXIN TITANIUM |
| Certification: | Norsok M650 |
| Model Number: | ASTM B381 F2 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Polywood cases |
| Delivery Time: | Min3days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram, D/P |
| Supply Ability: | 300TONS Per month |
| Material Grade: | Gr2 /F2 | Size Range: | OD57MM-OD700MM |
|---|---|---|---|
| Standard: | ASTMB381 | Tensile Strength: | MIN413 MPA |
| Elongation: | 18 | Hardness: | 100 HRB MAX |
| High Light: | TX titanium forged ring,100 HRB titanium forged ring,100 HRB forging ring rolling |
||
Subsea Use Titanium Tx Seal High Strength Forging Ring
With high strength,low density and corrosion resistance character, Titanium is the first good choice used in sea environment. TX seal forging produced by YIXIN has higher strength than normal ASTMB381 standard requirment. The acceptance : UTS 413 MPA at least,YS 330MPA. YIXIN has selected chemical composition in sponge and fixed the production process to meet the mechanical properties criteria. HSE operation idea and traceabilities has been firmly followed during the productions.
The production flow roughly as below: Titanium sponge selection , alloy additives for making the ingot by vaccum melting (VRC-Three times)→ Billet forging by Oil press→ Cutting of mateiral→Forging activities(Heating at times different by size)→ Heat treatment (Annealing)→Mechanical/chemical test→Machining→NDE test (Visual inspection/UT inspection/Hardness 100% on forgings)→Marking & Packing.
| Name | Titanium Ring/Titanium TX-seal Forgings |
| Titanium material grade | Gr2/F2 |
| Standard | ASTMB381/ Client spec. |
| NDE&Destructive test | UT/PT/Mechanical properties/Chemical composition check |
| Production method | Forging /Ring-Rolling |
UT test probe and calibrated block; Behind material is rest of test specimens.

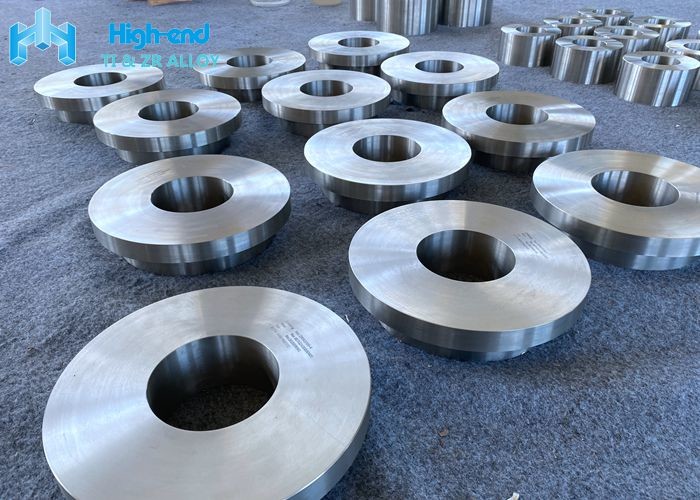

Titanium Ring Show
100% UT TEST
